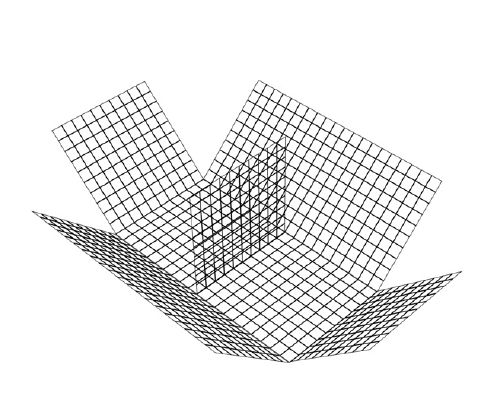

2、Erect each section up.

 Form an open box by erecting the sides, ends and diaphragms vertically.

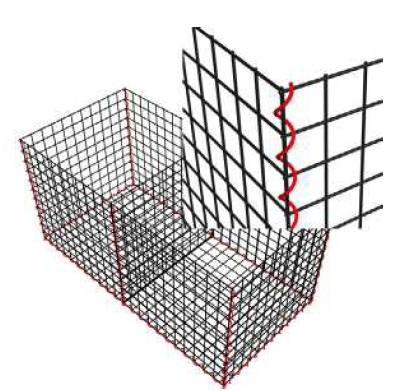

3、Secure Panels with Spiral Wires.

The edges of the gabion  and the diaphragms are then jointed together by using spiral wires, C clips or lacing wire. Pull each loop tightly and finally secure the end of the lacing wire to the wire mesh with a loop and/or twist. All units should be joined securely to any neighbouring gabions on the same layer before the filling commences.

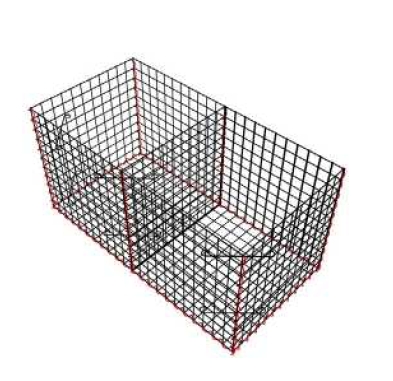

4、Install Stiffeners.

To avoid local deformation the cells should be filled in stages. At 1/3 depth of fill and again at 2/3 depth of fill, stiffeners should be placed from the front to back of the welded gabions.

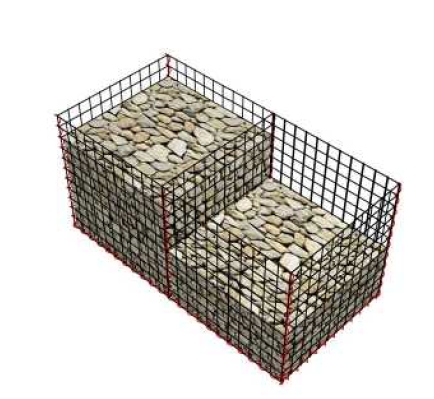

5、Fill the stones into gabions.

The rocks used should be hard, angular to round and durable. During the filling operation there may be a need to use manual stone placement to minimise any voids. The exposed faces of the vertical structures may be carefully hand placed for a neat, flat and aesthetically pleasing appearance.

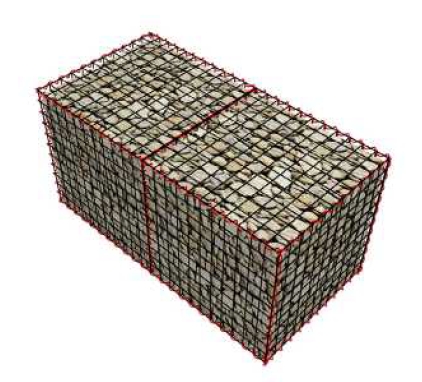

6、Covered lid with spiral wires.

The top edge of the diaphragm must be exposed. Fold the lid and edges of the panels to be connected down. The lids should be tightly laced along all edges to the sides and diaphragms in the same manner as described in the assembling units. All end wires should be turned in to prevent sharp protrusions.
