Woven Gabion Baskets
Woven mesh gabion boxes are hexagonal, double-twisted wire-mesh structures.The gabion boxes are divided into chambers by inserting diaphragms every meter. The wire used for making the boxes is made of thickly plated mild steel. The gabion units are delivered to the site flat-packed.
The double-twisted mesh connections of the woven mesh prevent the mesh from coming apart if the wire is cut or snaps, in each case the location of the fault is restricted to the neighbouring areas. The units are attached to each other using stitching wire and/or staples.

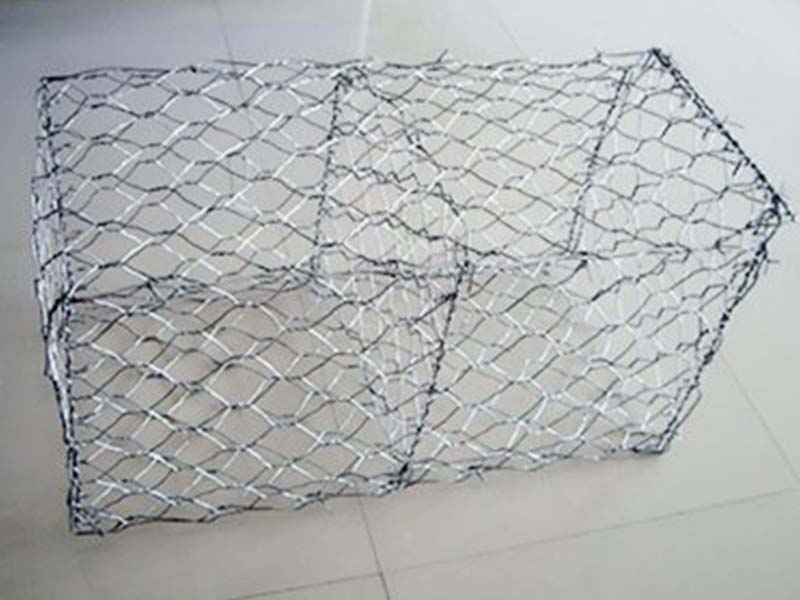

Galvanized Woven Gabion Box
- Acid and alkali resistance.
- Corrosion and rust resistance .
- Can be used in the salty environments.

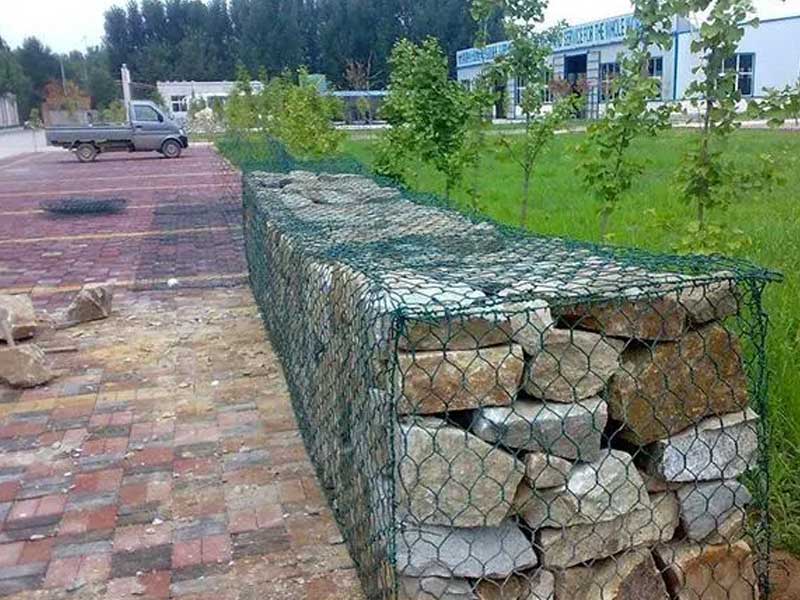

PVC Coated Woven Gabion Box
- Corrosion and rust resistance.
- Low cost and economical .
- Easy to install and assemble-Maintenance free.

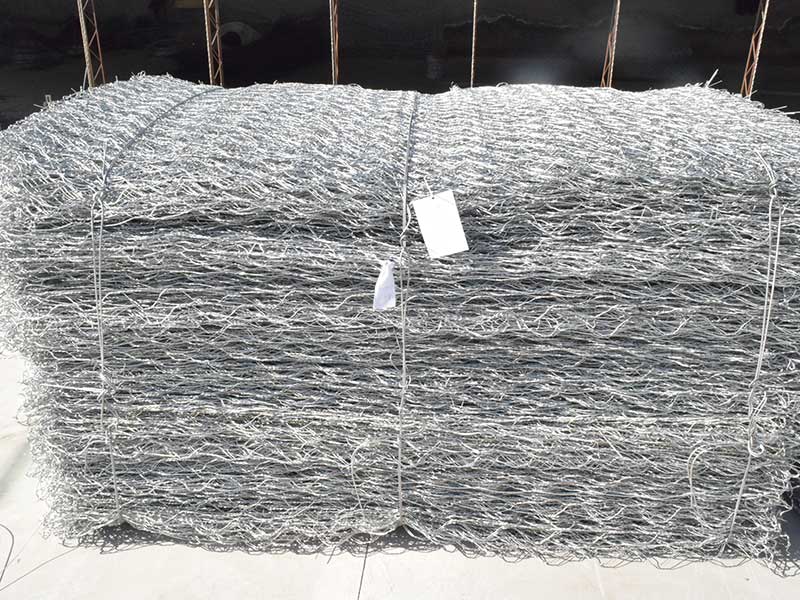

Galfan Gabion Mesh
- Galfan, 95% zinc, 5% aluminum
- Gabion Mesh Shape: Hexagonal
- Gabion Box is made of hexagonal wire netting
Gabion Mattress
The gabion mesh/wire versions generally used are summarised in the table below. In order to reinforce the structure, all edges are strengthened with a thicker wire. For the sizes and size tolerances belonging to the different versions see the table of dimensions below:
| Aperture | Wire Diameter | Edge wire | Gabion Sizes(m) | Material (zinc coating) |
|---|---|---|---|---|
| 60x80mm | 2.2mm/2.7mm | 2.4mm/3.4mm | 6x2x0.3m/2x1x0.5m | 1.galvanized steel wire2.high zinc steel wire 3.pvc coating steelwire |
| 80x100mm | 2.7mm/3.0mm/3.2mm | 2.4mm/3.4mm | 2x1x1/3x1x1m/4x1x1m | |
| 100x120mm | 3.0mm/3.05mm/3.2mm | 3.4mm | 3x1x1/4x1x1m/5x1x1m |

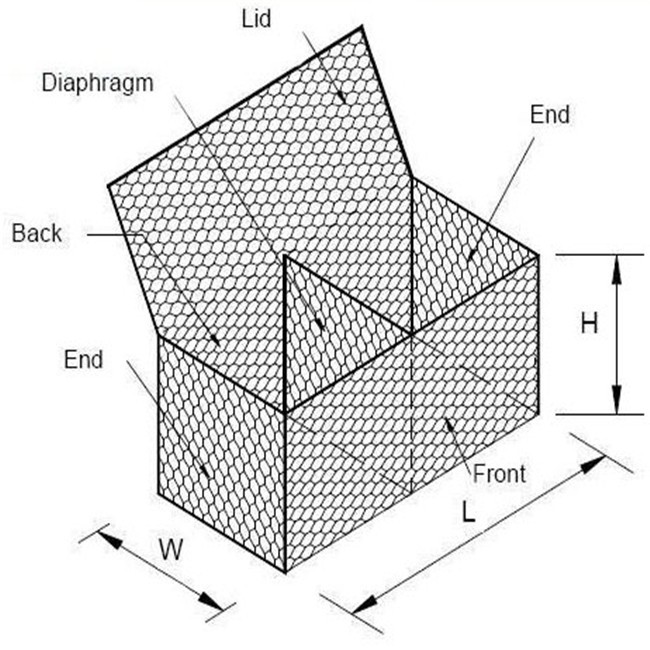

Specification of Gabion Basket

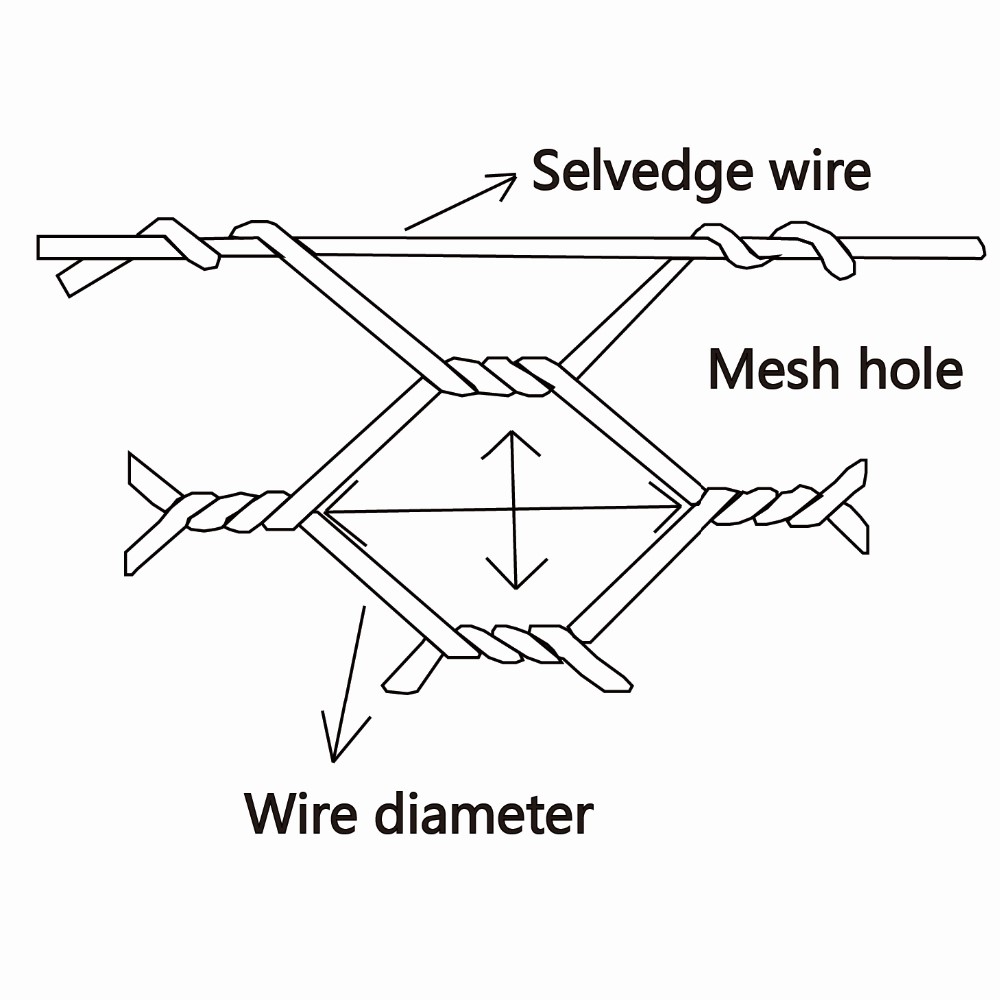

Mesh hole and weaving method.
If you're looking for a specific product that isn't in the list.
Please contact us, there are expert advice special for you according to your application and budget!
Contact UsApplication
The gabion net can be also used for slope support, foundation pit support, mountain rock surface shotcrete, slope planting (greening), railway expressway isolation and protection block.
Gabion Basket For River works.

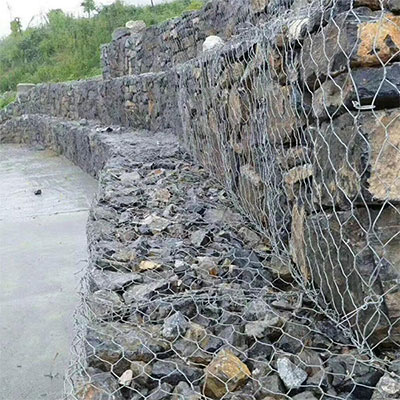

Gabion Basket For Retaining wall structures.
Production Process
Loading materials
weave.
finish.
Packing & Storage
Nude package,compacted before packaging.
Plastic packaging outside on the pallet.
Woven Gabion Mesh feature
- Gabion iron wire basket are made of hot dipped galvanized steel wire /heavy galvanized coating steel wire/ PVC coated wires.
- The mesh shape is hexagonal style.
- The gabion retaining wall are used widely in slope protection,mountain rock holding,gabion for river bank protection.
